SPECIFICATIONS

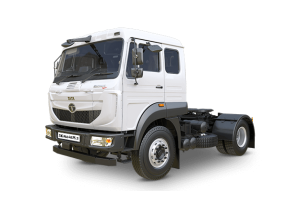

TATA SIGNA 4625.S BS6

PRODUCT DETAILS

Model

• TATA SIGNA 4625.S BS6

Weight

• GROSS COMBINATION WEIGHT : 45,500 Kg

Engine

• Engine : Cummins ISBe 6.7L BS6
• Max Power : 186 Kw @ 2300 r/min
• Max Torque : 950 Nm @ 1000 - 1800 r/min

Clutch

• Clutch : 430 mm Dia Push type Single Plate Dry Friction Organic Lining as per applicable GB

Transmission

• Transmission : TATA G1150 8F +1C + 1R Manual Synchromesh

Axle

• Front Axle : TATA Heavy Duty 7T Reverse Elliot Type
• Rear Axle : TATA Single Reduction RA110LD

Frame

• Frame : Ladder Type, Heavy Duty Frame | (285 x 65 x 7)

Suspension

• Suspension : Parabolic leaf at front Semi elliptical multi leaf spring

CAB

• CAB : SIGNA SLEEPER CABIN

Tyres

• Tyres : 295/90R20 Radial Tube Tyres

Ventilation

• Ventilation : Blower & AC options

Emission Control

• Emission Control : DOC + DPF + SCR + AMOX

Fuel Tank

• Fuel tank : Polymer 365 l & 557 l (365 l+192 l) with Anti Fuel Theft

Options

• GCW : 45500 Kg
• Skeletal : 7 m | 12 m |Rigid Axle | Lift Axle
• Flat Bed : 7m | 12m | Rigid Axle | Lift Axle
• Side Wall : 9 m (3-4 ft SW) | 10 m (4-5 ft SW)

WHEELBASE & APPLICATION

Wheelbase

• Wheelbase Option : 3320 mm

Application

• Cement | Flyash / Clinker | Limestones | LPG/Chemical tanker
• Aggregates | Steel coil | Flats / Bars
• Volumetric ODCs | Agro | Const. Agg, Shipping containers

SERVICE SCHEDULE & WARRANTY

ODI | Interval

• Engine : 80K Km (1st @ 40K Kms)
• Gear Box : 160K Km (1st @ 1.2L Kms)
• Rear Axle : 160K Km (1st @ 1.2L Kms)
• Hub Grease : 160K Km (1st @ 1.2L Kms)

Warranty

• Driveline Warranty : 6 Year | 6 L Km

The SIGNA 4625.S is engineered with new designed philosophy for improving Customers Business Profitability and Sustained growth. The TATA SIGNA 4625.S BS6 range is pitched to heighten bar of customer's experience and improving operating economics based on unique customer proposition of POWER OF 6

• Power of Enhanced Performance
• Power of Total Cost of Ownership
• Power of Comfort and Convenience
• Power of Choice
• Power of Connectivity
• Power of Total Peace of Mind

Powered by a Cummins ISBe 6.7L engine which is Cummins largest selling engine in the world delivering 250 HP and 950Nm torque, option of application specific G950 and G1150 GB and shallower RAR Maximizing Performance & Drivability and Minimizing the Total Cost of Ownership. The product comes with various unique value features like 3 mode fuel economy switch, Gear shift advisor, Engine Brake etc. that enhances vehicle performance

SIGNA 4625.S with its improved ergonomics and smart use of cabin space, it offers a more superior in-cab experience. The AC and ventilation options enable drivers to operate fatigue free over long hauls which in turn boosts productivity significantly.

SIGNA 4625.S comes with CX and LX variants featuring world class performance and safety features like, Hill start assist, Truck hub unit and a comprehensive new generation Connected Vehicle Solutions encompassing the entire gamut of business that gives you an excellent trucking experience.

SPECIFICATIONS

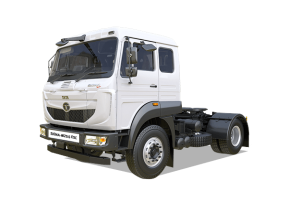

TATA SIGNA 4625.S ESC

PRODUCT DETAILS

Model

• TATA SIGNA 4625.S BSVI

Weight

• GROSS COMBINATION WEIGHT : 45,500 Kg

Engine

• Engine : Cummins ISBe 6.7L BSVI
• Max Power : 186 Kw @ 2300 r/min
• Max Torque : 950 Nm @ 1000 - 1800 r/min

Clutch

• Clutch : 430 mm Dia Push type Single Plate Dry Friction Organic Lining

Transmission

• Transmission : TATA G1150 8F +1C + 1R Manual Synchromesh

Axle

• Front Axle : TATA Heavy Duty 7T Reverse Elliot Type
• Rear Axle : TATA Single Reduction RA110LD

Frame

• Frame : Ladder Type, Heavy Duty Frame | (285 x 65 x 7)

Suspension

• Suspension : Parabolic leaf at front Semi elliptical multi leaf spring

CAB

• CAB : SIGNA SLEEPER CABIN

Tyres

• Tyres : 295/90R20 Radial Tube Tyres

Ventilation

• Ventilation : Air Conditioning

Emission Control

• Emission Control : DOC + DPF + SCR + AMOX

Fuel Tank

• Fuel tank : Polymer 365L with Anti Fuel Theft

WHEELBASE

Wheelbase

• Wheelbase Option : 3320 mm

The Signa 4625.S is a standout tractor trailer from the new and improved BS6 enhanced MHCV range, now with a built-in Electronic Stability Control system. The truck is designed with intelligence, to deliver on the Power of 6:

• Power of Enhanced Performance
• Power of Lower Total Cost of Ownership
• Power of Comfort and Convenience
• Power of Choice
• Power of Connectivity
• Power of Total Peace of Mind

Advanced technology backs the ever-reliable and high performing Cummins ISBe 6.7L engine with 250 HP and 950 Nm torque. High power, torque and gradeability gives the Signa 4625.S its excellent pickup, load pulling and multi-terrain abilities. While features like a three mode Fuel Economy switch, Gear Shift Advisor and Load Based Speed Control ensure the highest fuel efficiency and mileage.

The new Signa 4625.S is one of the safest heavy-duty tractors in the market, thanks to Tata Motors' ESC smart, the industry's first and most efficient ESC technology to homologate on commercial vehicles. This technology increases vehicle stability during critical driving manoeuvres (oversteer or understeer) by pre-empting and preventing roll-overs or accidents. It reduces roll over effect by selective intervention on the brakes and engine. This additionally protects against added repair and maintenance costs, while improving vehicle uptime and driver & cargo safety because of enhanced stability and control

From its strong aggregates to the stylish and comfortable cabin, the Signa 4625.S boasts a variety of enhanced features that improve its functionality, convenience, safety and value. These include a new generation instrument cluster, new generation telematics, AC option, Hill Start Assist, Truck Hub Unit and more. It's got everything that makes it the top choice for a spectrum of businesses and applications that need a safe and profitable trucking solution.

SPECIFICATIONS

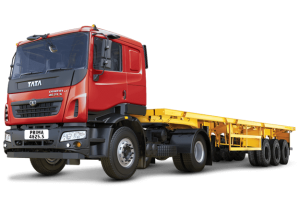

TATA PRIMA 4625.S BS6

PRODUCT DETAILS

Model

• TATA PRIMA 4625.S BS6

Weight

• GROSS COMBINATION WEIGHT : 45,500 Kg

Engine

• Engine : Cummins ISBe 6.7L BS6
• Max Power : 186 Kw @ 2300 r/min
• Max Torque : 950 Nm @ 1000 - 1800 r/min

Clutch

• Clutch : 430 mm Dia Push type Single Plate Dry Friction Organic Lining as per applicable GB

Transmission

• Transmission : TATA G1150 8F +1C + 1R Manual Synchromesh

Axle

• Front Axle : TATA Heavy Duty 7T Reverse Elliot Type
• Rear Axle : TATA Single Reduction RA110LD

Frame

• Frame : Ladder Type, Heavy Duty Frame | (285 x 65 x 7)

Suspension

• Suspension : Parabolic leaf at front, Bogie suspension | Bell Crank Suspension at Rear

CAB

• CAB : PRIMA SLEEPER CABIN

Tyres

• Tyres : 295/90R20 Radial Tube Tyres

Ventilation

• Ventilation : Standard AC cabin

Emission Control

• Emission Control : DOC + DPF + SCR + AMOX

Fuel Tank

• Fuel tank : Polymer 365L & 557L (365L + 192L) with Anti Fuel Theft

Options

• GCW : 45500 Kg
• Skeletal : 7 m | 12 m |Rigid Axle | Lift Axle
• Flat Bed : 7m | 12m | Rigid Axle | Lift Axle
• Side Wall : 9 m (3-4 ft SW) | 10 m (4-5 ft SW)

WHEELBASE & APPLICATION

Wheelbase

• Wheelbase Option : 3400 mm

Application

• Cement | Flyash / Clinker | Limestones | LPG/Chemical tanker
• Aggregates | Steel coil | Flats / Bars
• Volumetric ODCs | Agro | Const. Agg, Shipping containers

SERVICE SCHEDULE & WARRANTY

ODI | Interval

• Engine : 80K Km (1st @ 40K Kms)
• Gear Box : 160K Km (1st @ 1.2L Kms)
• Rear Axle : 160K Km (1st @ 1.2L Kms)
• Hub Grease : 160K Km (1st @ 1.2L Kms)

Warranty

• Driveline Warranty : 6 Year | 6 L Km

The PRIMA 4625.S is engineered with an all-new design philosophy to improve business profitability and deliver sustained growth based on unique customer proposition that is POWER OF 6.

• Power of Enhanced Performance
• Power of Total Cost of Ownership
• Power of Comfort and Convenience
• Power of Choice
• Power of Connectivity
• Power of Total Peace of Mind

Prima 4625.S us powered by the Cummins ISBe 6.7L engine - the largest selling engine in the world - delivering 250 HP and 950Nm torque. The option of G1150 GB and shallower RAR, maximises performance and drivability and minimizes the total cost of ownership.

The product comes with various unique value features like 3 mode fuel economy switch, Gear Shift Advisor, Engine Brake, etc. that enhances fuel efficiency and driver safety.

PRIMA 4625.S offers world class ergonomics and smart use of cabin space, enabling superior in-cab experience.

The standard AC offering enables drivers to operate fatigue free over long hauls which in turn boosts productivity significantly.

PRIMA 4625.S comes with LX variants, featuring world class performance and safety features such as Hill start assist and Truck hub unit.

In addition, the comprehensive new generation Connected Vehicle Solutions help you optimise every aspect of your business.
